Spark Plug Electrode Gap

If your Accord has difficulty starting or if it is misfiring check the condition of the spark. Do Spark Plugs Always Have to Be Gapped.

How To Gap Spark Plugs Champion Auto Parts

Double fine wire electrode DFE spark plugs apply a fine wire pin to the ground electrode in addition to a fine wire center electrode.

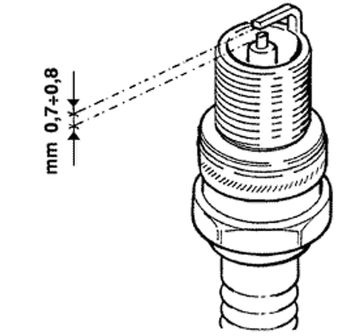

Spark plug electrode gap. The gap measurement will be indicated in thousandths of a inch. With time spark plugs wear out. The gap is the distance between the center and side electrodes set so arcing occurs at the proper voltage that ignites the fuel and generates the combustion that makes the engine run.

To increase the plug gap using a simple gap tool place the end of the ground electrode in the hole and carefully push down on the end of tool. As the spark always follow the path of least resistance spark gap is generally the closest point between the spark plug center electrode and the spark plug ground electrode which is sometimes formed by the spark plug shell itself. Designed for operation in the 20 to 100 kV range the switch can reliably handle a peak current of 100 kA and a charge transfer of 015 Cou-.

Beyond that slight adjustment the ground electrode and center electrode wont align properly hindering spark plug performance and drastically reducing plug life. To do this use either a pair of needle nose pliers or a dedicated spark plug gapping tool. Electrode gap 200 180 160 140 120 100 80 60 40 20 0 10 20 30 40 50 Synthetic Air SF 6 10 cm total electrode gap SELF-BREAK.

The central electrode protrudes through the porcelain insulator into the combustion chamber forming one or more spark gaps between the inner end of the central electrode and usually one or more protuberances or structures attached to the inner end of the threaded shell and designated the side earth or ground electrodes. A spark plug gap is the distance between the end of the electrode and the base of the spark plug. A smaller electrode requires less voltage to jump the gap resulting in fewer misfires which translates to increased fuel economy and horsepower.

The gap spacing of general spark plugs is between 06 and 13 mm. If your spark plugs arent properly gapped your engine may not burn fuel properly. On a conventional spark plug it is the area between the center and the ground electrode.

The electrode gap is meticulously controlled when a spark plug is manufactured and due to the very large selection of plugs in most cases the electrode gap is. Electrode Gap The electrode gap of a spark plug dictates the spark magnitude. Since every make and model requires a different gap size start by looking in the owners manual for your vehicle to find the required gap size or pull the information up online.

They can also be fouled by oil contamination or a rich fuel mixture. For example a typical plug gap is 0035 or thirty-five thousandths of an inch. Spark plugs may also be used for other purposes.

Spark plugs have a terminal on one end that receives the charge and a center and ground electrode on the other end which arcs and creates the spark. You can adjust the spark plug gap if it was not set correctly. To close the gap on a plug gently tap the plug electrode first on a hard surface.

If one ground electrode is closer to the center than the others itll be the one that sparks more frequently less gap lower path of resistance. Projected square platinum electrode PSPE spark plugs apply a square shaped tip of platinum to the end of a shortened ground electrode. Spark plug gap refers to the gap between the spark plug center electrode and the grounding electrode.

Most drivers understand that the spark plug gap the space between the two electrodes on the spark plug tip is a critical element of how the component operates. There are base standards for the gap specifically025 for a stock street engine and028 for a performance engine. The tool must not be wedged between the electrodes as that may.

Spark plugs generally produce 10000 to 30000 volts of arc between the electrode points. An incorrect electrode gap may affect engine performance as the spark magnitude may be insufficient to ensure complete combustion of the air-fuel mixture. NGK doesnt recommend adjusting the plug gap more than008 in either direction.

To widen the electrode gap use a tool that only pulls back the ground electrode without applying pressure to the center electrode see illustration 1. To avoid damage to a spark plug in the process of adjusting the gap it is important to follow these guidelines. In Saab Direct Ignition when they are not firing spark plugs are used to measure ionization in the cylinders this.

Reeves warns that a too-wide gap can create the situation where the spark fires sideways to the edge of the plug. The T-670 switch is an extremely versatile and compact pressurized spark gap. This ground electrode shape allows the spark to be focused between the fine-wire center electrode and projecting platinum ground electrode.

On multiple electrode plugs youll want all three ground electrodes to be gapped an equal space from the center electrode. However some drivers dont understand that the gap has a direct effect on the operation and exertion put forth by the ignition system to actually start the engine. A smaller electrode requires less voltage to jump the gap resulting in fewer misfires which translates to increased fuel economy and horsepower.

To increase the gap gently bend the ground electrode towards the center electrode. Every time your ignition system sends a spark down the plug wire to the plug it reaches the center electrode and has to jump across the gap to the ground electrode. A smaller electrode also reduces flame quenching.

Importance of the Spark Plug Gap. While the spark still occurs it can retard the timing by as much as two degrees. A smaller electrode also reduces flame quenching.

The space between the two electrodes is call the gap. When replacing spark plugs ensuring that the plugs have the proper gap is critical to engine performance. The larger the spark plug gap is the longer the arc will be generated when igniting.
